Introduction

One of the critical factors influencing product quality, safety, and cost efficiency is “screw pitch.” Pitch refers to the distance between adjacent screw threads, and this subtle difference significantly impacts fastening strength, anti-loosening effect, ease of assembly, and even product lifespan.

In manufacturing, selecting the appropriate screw pitch is paramount at every stage, from design and procurement to production and final product performance. Particularly in environments subject to vibration or shock, applications requiring precise positioning, or those involving frequent disassembly and reassembly, an incorrect pitch selection can lead to serious problems.

This article provides concrete guidelines for manufacturing decision-makers, procurement managers, and technical personnel to select the optimal screw pitch. We will detail the fundamental knowledge of screw pitch, the characteristics, advantages, and disadvantages of coarse threads (standard threads) and fine threads, and how to choose them for specific applications. Furthermore, we will discuss the challenges of screw selection in Vietnam’s manufacturing sector and introduce the solutions offered by Ohta Vietnam, strongly supporting your product development and production activities.

Fundamentals of Screw Pitch

Definition and Measurement of Screw Pitch

Pitch is expressed in millimeters (mm) or inches (inch). Metric threads denote the nominal diameter and pitch in millimeters, such as “M6×1.0” (e.g., M6 indicates a nominal diameter of 6mm and a pitch of 1.0mm). Inch threads (e.g., Unified threads) express pitch by the number of threads per inch (TPI) (e.g., 1/4-20UNC signifies a 1/4-inch diameter with 20 threads per inch, approximately 1.27mm pitch). The thread angle for both metric threads (ISO/JIS standards) and Unified threads is specified as 60 degrees.

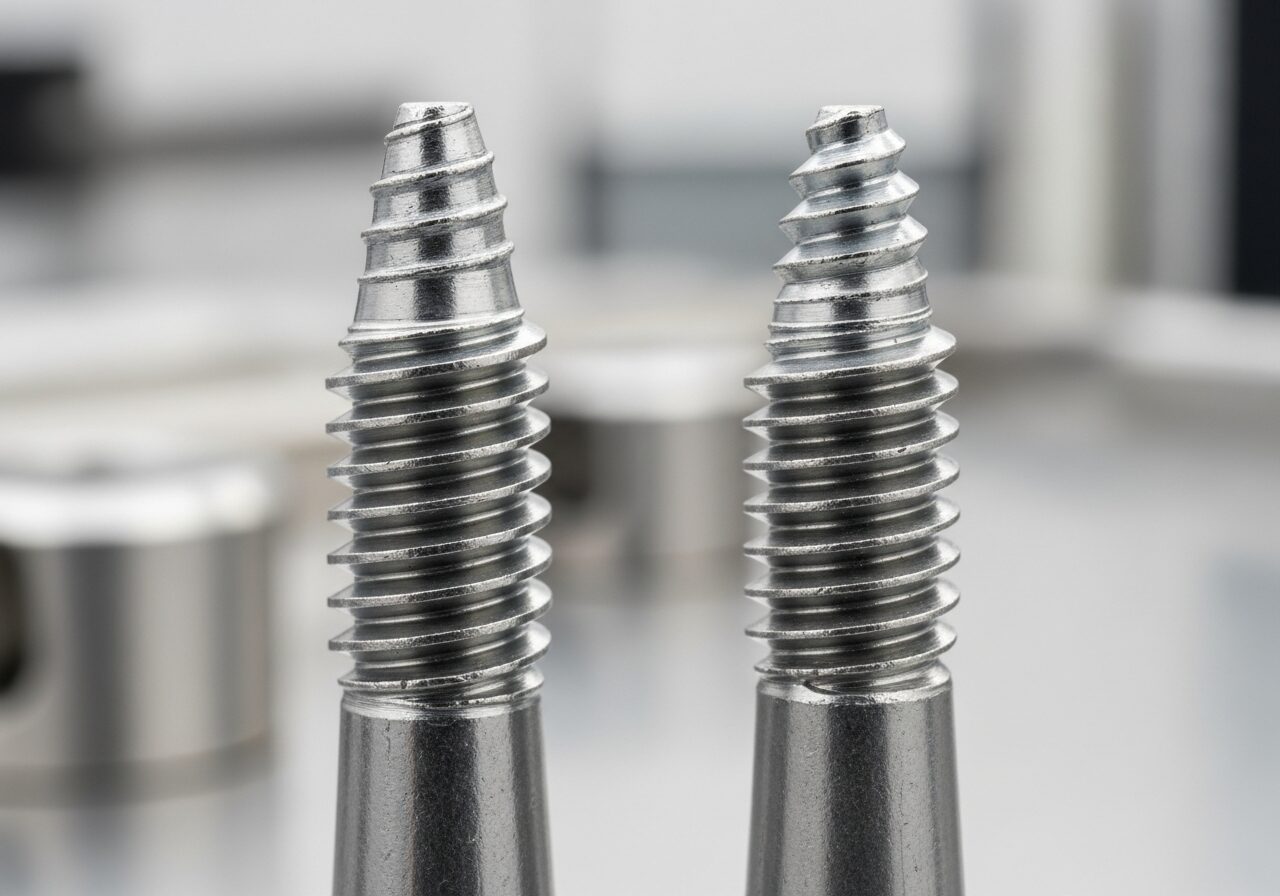

Concepts of Coarse Threads (Standard Threads) and Fine Threads

Screw pitches are broadly categorized into “coarse threads (standard threads)” and “fine threads.” Coarse threads, often referred to as “standard threads,” are the most widely used and are standardized by JIS B 0205-1:2001 (Metric Coarse Threads) and ISO 68-1:1998. Fine threads are specified by standards such as JIS B 0207-1:2001 (Metric Fine Threads) and have a finer pitch than standard threads.

Characteristics and Selection Points for Coarse Threads (Standard Threads)

Coarse threads, particularly standard threads, are the most widely used in industry due to their versatility. Understanding their characteristics and selection points is essential for choosing the appropriate fastening components.

Definition and Features of Coarse Threads

Coarse threads are characterized by a larger pitch and higher (deeper) thread profile compared to fine threads of the same nominal diameter. This results in a larger cross-sectional area of the thread itself, making them more resistant to damage.

Advantages

• Versatility and Compatibility: They adhere to the most common standards, ensuring wide market availability and easy procurement.
• Ease of Machining: The larger pitch makes thread cutting relatively easier, reducing the risk of machining defects and tap breakage (for internal threads).
• Cost Efficiency: Being mass-produced and easy to machine, they are generally more affordable than fine threads.
• Ease of Assembly and Disassembly: The coarser threads allow for faster and more efficient engagement. They are easier to thread even with minor contaminants and are simple to disassemble.

Disadvantages

• Tendency to Loosen: Due to the larger pitch and smaller contact area between thread crests and roots, their anti-loosening effect against vibration and shock is inferior.
• Limited Fastening Strength: For the same nominal diameter, the effective cross-sectional area is smaller compared to fine threads, making them unsuitable for applications requiring high fastening strength.
• Difficulty in Fine Adjustment: The larger pitch can make precise positional adjustments and fine-tuning of tightening torque challenging.

Primary Applications

Coarse threads are utilized in a wide range of applications, including:

• General mechanical component assembly
• Building structures, furniture
• Automotive parts (non-critical safety components)
• Areas requiring frequent disassembly and reassembly

Examples of Standard Thread Pitches (Excerpt from JIS B 0205-1:2001):

• M3 Standard Thread Pitch: 0.5mm
• M4 Standard Thread Pitch: 0.7mm
• M5 Standard Thread Pitch: 0.8mm
• M6 Standard Thread Pitch: 1.0mm
• M8 Standard Thread Pitch: 1.25mm
• M10 Standard Thread Pitch: 1.5mm
• M12 Standard Thread Pitch: 1.75mm
• M16 Standard Thread Pitch: 2.0mm

Characteristics and Selection Points for Fine Threads

Fine threads, with their smaller pitch, excel in applications demanding specific high performance and reliability. Proper selection can significantly enhance product performance and safety.

Definition and Features of Fine Threads

Fine threads are characterized by a smaller pitch and lower (shallower) thread profile compared to standard threads of the same nominal diameter. This results in a greater number of threads and increased contact area between them.

Advantages

• High Fastening Strength: Due to the greater number of threads and shallower valleys, the effective cross-sectional area of the screw shank is larger, resulting in higher fastening strength than standard threads. An M10 fine thread (pitch 1.25mm or 1.0mm) can have approximately 5% to 10% higher tensile strength than a standard thread (pitch 1.5mm).
• Superior Anti-Loosening Effect: The smaller pitch and larger contact area between thread crests and roots increase frictional resistance. This enhances the anti-loosening effect against vibration and shock, with reported improvements in loosening resistance of about 10% to 20%.
• Ease of Fine Adjustment: The fine pitch means a small axial movement for each rotation, facilitating precise positional adjustments and fine-tuning of tightening torque.
• Applicability to Thin Materials: With lower thread profiles, it’s easier to ensure a sufficient number of threads (2-3 threads or more) even in thin sheet materials or pipes where the tapped section has minimal wall thickness.
• Airtightness and Liquid-tightness: The dense threads make them suitable for applications requiring high airtightness or liquid-tightness, such as hydraulic and pneumatic piping.

Disadvantages

• Increased Machining Costs: The fine pitch makes thread cutting more challenging, increasing the risk of tap breakage and leading to higher machining time and costs.
• Tendency to Gall: Due to the fine threads, friction between metal surfaces during tightening can easily lead to galling (seizing), especially noticeable with stainless steel.
• Risk of Problems from Contaminants: The dense threads increase the risk of foreign matter such as chips, paint, or dirt causing threading failures or improper fastening.

Primary Applications

Fine threads are selected for applications requiring high reliability and precision, such as:

• Critical safety components in automotive engines and suspension systems, subject to vibration and shock
• Aerospace equipment, precision machinery, optical instruments
• Piping and fittings for hydraulic and pneumatic equipment
• Fastening to thin plates or components with thin wall thickness

Examples of Fine Thread Pitches (Excerpt from JIS B 0207-1:2001):

• M6 Fine Thread Pitch: 0.75mm
• M8 Fine Thread Pitch: 1.0mm or 0.75mm
• M10 Fine Thread Pitch: 1.25mm or 1.0mm or 0.75mm
• M12 Fine Thread Pitch: 1.5mm or 1.25mm or 1.0mm
• M16 Fine Thread Pitch: 1.5mm or 1.0mm

Considerations for Screw Pitch Selection in Vietnam’s Manufacturing Sector

Vietnam has maintained an average annual economic growth of over 6% for the past decade, solidifying its presence as a major manufacturing hub. However, many manufacturers, including Japanese companies, face unique challenges in procuring fastening components, particularly concerning screw pitch selection.

Local Procurement and Quality Control of Fastening Components in Vietnam

The local procurement rate for industrial products in Vietnam’s manufacturing sector averages approximately 30% to 40% (according to JETRO surveys). There is a high reliance on imports for precision components and special standard fastening parts. Locally available screws primarily consist of standard threads, while fine threads and special pitches can pose challenges in terms of quality and supply stability.

For Japanese companies manufacturing in Vietnam, maintaining the same quality standards as in Japan necessitates extremely rigorous supplier selection and quality control. Screws with non-standard pitches or inappropriate materials can lead to significant risks such as reduced product performance, failures, and recalls.

Challenges Faced by Japanese Companies: Standard Compatibility and Supply Chain Issues

The number of Japanese companies operating in Vietnam exceeds approximately 2,000 (JETRO 2023 data), with many establishing production bases. These companies often encounter issues with screw standard compatibility when manufacturing products designed in Japan within Vietnam. This includes cases where specific fine-pitch screws are difficult to procure in the local market or where their quality is inconsistent.

Furthermore, the increasing complexity of supply chains presents another challenge. When sourcing components from multiple suppliers, it is crucial to standardize specifications, including screw pitch, and ensure thorough quality control. Selecting the appropriate screw pitch and ensuring a stable supply are indispensable for enhancing a product’s international competitiveness.

Solutions Offered by Ohta Vietnam

Ohta Vietnam is a team of specialists dedicated to solving fastening component challenges in Vietnam’s manufacturing sector. We provide comprehensive support to select the optimal screw pitch for your product design and application, ensuring high-quality and stable supply.

• Procurement Support: Leveraging our network of domestic and international suppliers who meet Japanese quality standards, we stably procure fastening components, from coarse threads to specialized fine threads, that match your specific needs.
• Technical Support: We offer technical consultation on screw pitch selection, proposing optimal solutions that contribute to improved product performance, cost reduction, and enhanced productivity.
• Quality Assurance System: Based on a stringent quality management system, we provide consistent quality assurance from incoming inspection to shipment, minimizing quality risks in your production in Vietnam.
• Local Responsiveness: With our presence in Vietnam, we provide prompt responses and flexible support to strongly back up your production activities.

Conclusion

Screw pitch is not merely a dimension; it is a critical factor that directly impacts product performance, safety, durability, and production costs. While coarse threads (standard threads) offer excellent versatility and cost efficiency, making them suitable for general applications, fine threads prove their worth in situations demanding high fastening strength, superior anti-loosening effects, and precise adjustment capabilities.

Selecting the appropriate screw pitch is the first step towards ensuring product quality and preventing unforeseen issues. Especially in environments subject to vibration or shock, applications requiring precise positioning, or fastening to thin materials, the adoption of fine threads should be actively considered.

In Vietnam’s manufacturing sector, challenges related to local procurement and standard compatibility further complicate screw selection. Ohta Vietnam addresses these issues by providing optimal fastening component solutions through procurement support, technical assistance, and a stringent quality assurance system, all based on years of experience and specialized expertise. To maximize product performance and ensure smooth production activities, please do not hesitate to consult Ohta Vietnam if you face challenges in screw pitch selection. We promise that our expertise will contribute to the success of your business.
